Manual Sliding Jack - 1.75 Ton
The Manual Sliding Jack - RJ35 provides a 1.75-ton lifting capacity with a compact, low-profile design and scissor mechanism for stable, level lifts. Featuring adjustable width, multiple safety lock positions, and included adapters for versatile height adjustments, it’s ideal for various applications.
Features
- Manually operated
- Scissor mechanism allows for level lifting
- Compact size with a low profile
- Adjustable width
- Safety lock positions
- Adapters included
- Powder coated finish
- Adapter storage
- Long handle
Suitable for the following models:
- TL3.6PH-H
- TLV3.6PH-S

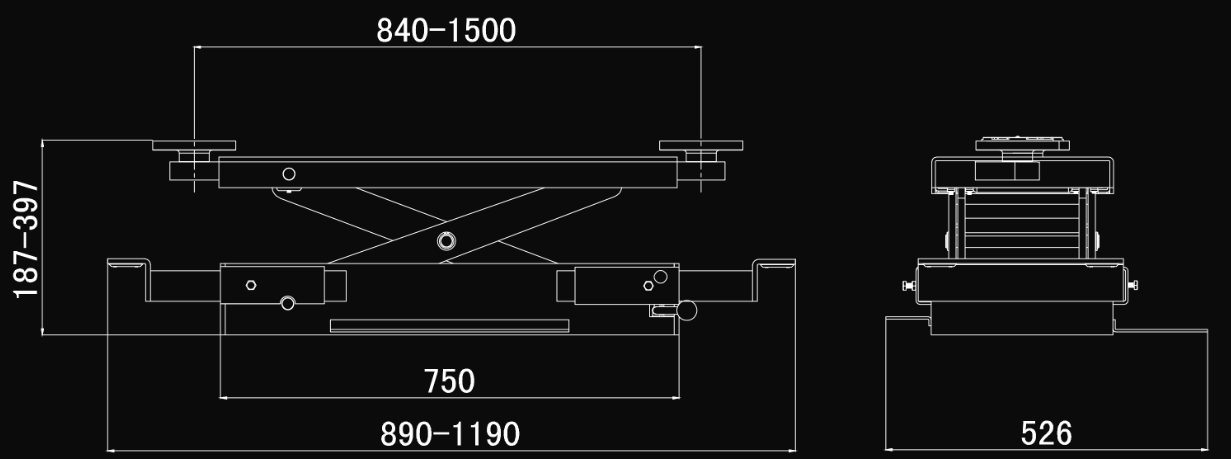

Specifications
Capacity: 1580KG
Minimum width: 749mm
Minimum width with arms in: 1003mm
Minimum width with arms out: 1644mm
Minimum height with lift pad: 88mm
Lifting pad: 34mm
Short adapter: 31mm
Tall adapter: 127mm
Raised height without adapter: 279mm
Raised height with small adapter: 311mm
Raised height with large adapter: 406mm
Raised height with small and large adapter: 438mm
Freight dimensions: L 950mm W 610mm H 260mm W 136KG
